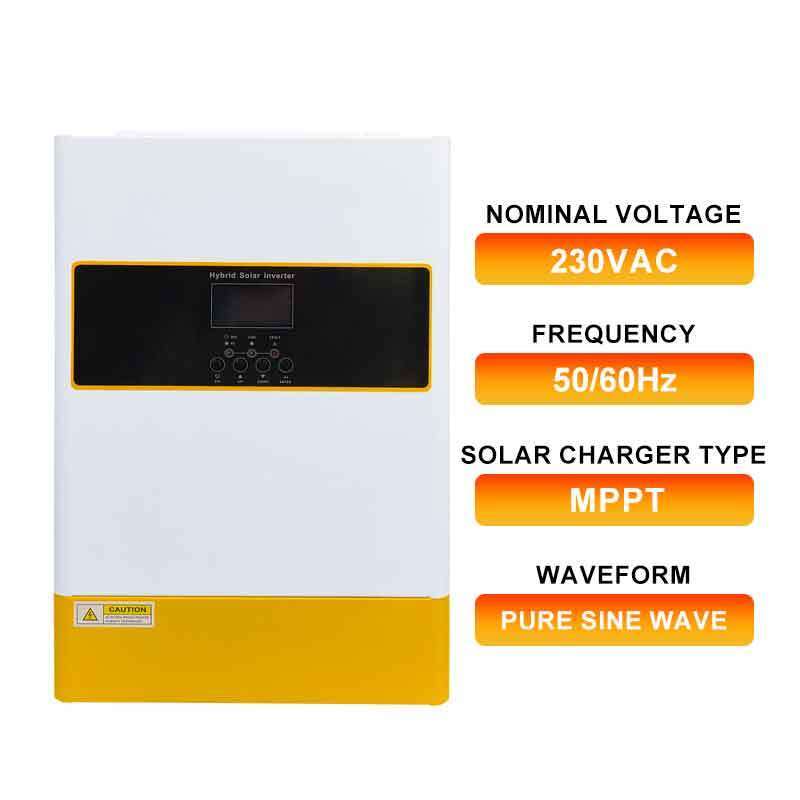

6.2KW Solar Power Inverter 500VDC Max PV Input AC Charge 80A Total Charge 120A

Name: 6.2KW Solar Power Inverter 500VDC Max PV Input AC Charge 80A Total Charge 120A
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) 5500-48PL
Price: 350.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: China

Merknaam: 1stess

Certificering: CE, IEC

Modelnummer: EM-T (PV60-500VDC) 5500-48PL

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 stuk

Prijs: To be negotiated

Verpakking Details: Kartonnen doos

Levertijd: 30 dagen

Betalingscondities: L/C, T/T

Levering vermogen: 2000 stuks per maand

Krijg Beste Prijs

Contact nu

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          6.2KW hybrid solar inverter, 500VDC solar power inverter, 80A charge off-grid inverter


Oplaadmodus:	MPPT	Bedrijfstemperatuur:	-10°C tot 50°C
Omvormer type:	Off Grid Inverter	Frequentie:	50 Hz/60 Hz
Nominale uitgangsspanning:	220VAC/230/240VAC	Communicatie-interface:	RS232+ RS485+ externe CT -poort
Acceptable ingangsspanningsbereik:	170-280VAC of 90-280VAC	Maat:	450300130 mm
Golfvorm:	Zuivere sinusgolf	Uitgangsstroom:	120A
Gewicht:	12KG

Oplaadmodus:	MPPT
Bedrijfstemperatuur:	-10°C tot 50°C
Omvormer type:	Off Grid Inverter
Frequentie:	50 Hz/60 Hz
Nominale uitgangsspanning:	220VAC/230/240VAC
Communicatie-interface:	RS232+ RS485+ externe CT -poort
Acceptable ingangsspanningsbereik:	170-280VAC of 90-280VAC
Maat:	450300130 mm
Golfvorm:	Zuivere sinusgolf
Uitgangsstroom:	120A
Gewicht:	12KG

Beschrijving

6.2KW Solar Power Inverter 500VDC Max PV Input AC Charge 80A Total Charge 120A

6.2KW Solar Power Inverter with 500VDC Max PV Input and 120A Total Charge

High-performance hybrid solar inverter designed for residential and commercial applications, featuring pure sine wave output, flexible parallel expansion, and advanced battery compatibility.

Key Features

6.2KW Pure Sine Wave Output - Rated power 6.2KVA/6.2KW with surge capacity up to 12400VA and power factor 1.0, compatible with all household and office appliances
Flexible Parallel Expansion - Supports up to 12 units in parallel for single-phase or three-phase configurations, easily scaling from residential to commercial applications
High PV Input Voltage (500VDC Max) - MPPT voltage range 60-450VDC, compatible with high-voltage solar panels for improved system efficiency
Built-in 120A High-Current MPPT Controller - Maximum solar input current 27A with 120A solar charge capacity for rapid and efficient photovoltaic energy harvesting
Advanced Lithium Battery Compatibility - Supports Li-ion/LiFePO4 battery activation via PV or utility power with RS485 communication for BMS integration
Multiple Output Priority Modes - Selectable UTL, SOL, SBU, and SUB operation modes to adapt to various usage scenarios and energy requirements
Battery-less Operation - Can operate without battery storage, reducing initial investment costs and increasing system flexibility

Advanced Performance Features

Wide AC Input Range	170-280VAC (PC mode) / 90-280VAC (home appliance mode), adapts to unstable grid conditions
Auto Frequency Sensing	Automatically detects 50/60Hz operation
High Efficiency	Peak efficiency up to 94% for optimal energy conversion
Fast Transfer Time	10ms (PC mode) / 20ms (home appliance mode) for uninterrupted power to critical loads
Comprehensive Protection	Overload protection (5s @ ≥140% load; 10s @ 110%-140% load), overcharge protection (63VDC)
Multiple Communication Ports	RS232 & RS485, plus plug-and-play WiFi Dongle support for remote monitoring and control
Detachable Dust Cover	Protects against harsh environments, extending product lifespan
Equalization (EQ) Function	Optimizes battery performance and prolongs battery life

Technical Specifications

Specification	GM5500-48PL	GM6200-48PL
Phase Configuration	1-Phase In / 1-Phase Out	1-Phase In / 1-Phase Out
Maximum PV Input Power	5500W	6500W
Nominal Output Voltage	220/230/240V AC	220/230/240V AC
Output Waveform	Pure Sine Wave	Pure Sine Wave
Battery Voltage	48V DC	48V DC
Communication Ports	RS232 + RS485 + External CT Port	RS232 + RS485 + External CT Port
Maximum Solar Charge Current	100A	120A
Dimensions (D x W x H)	448 × 315 × 122 mm	450 × 300 × 130 mm

Product Images

Front View

Side View

Display Panel

Connection Terminals

Installation Diagram

Tags:
